Details on 2nd Street Protected Bike Lanes, Ped Upgrades Come Into Focus

A rendering of Second Street at South Park. Images: DPW

The plan for raised, parking-protected bike lanes and pedestrian safety improvements on Second Street is shaping up after the Department of Public Works presented new details [PDF] last week.

When completed in September 2016, the project is expected to transform Second into a far safer corridor with protected bike lanes, wider sidewalks, pedestrian bulb-outs, more visible crosswalks, and new greenery.

In response to calls for wider sidewalks, planners added a major improvement in the latest iteration of the plan. Originally, city staff said only one of the narrow sidewalks on the stretch of Second between Harrison and Townsend Streets could be widened due to budget constraints. But because of a push from residents who emphasized the importance of taking the opportunity to widen sidewalks on both sides to 15 feet, the project will now include that change, said Cristina Olea, DPW’s project manager. Utility poles will remain in place until the city funds a separate project to move the overhead wires underground.

Despite surveys showing broad support for the proposed improvements, as well as praise for DPW’s extensive community outreach from residents and city officials, discussion at the latest meeting was hijacked by a contingent of residents from a building at 355 Bryant Street who said they were recently caught off guard by the project.

Those residents mostly voiced fears about traffic congestion and problems with loading that they claimed would result from the project. When one man argued that the proposed safety improvements couldn’t be made because car commuters need all four existing traffic lanes to get to and from the Bay Bridge, Olea said the improvements should discourage those drivers from using Second as an alternative to the main motor routes like First and Third Streets.

“Our overall vision is to de-emphasize Second Street as a route to the freeway,” said Olea. “It’s not an arterial.”

Second at Tehama Street, an alleyway between Folsom and Howard Streets.

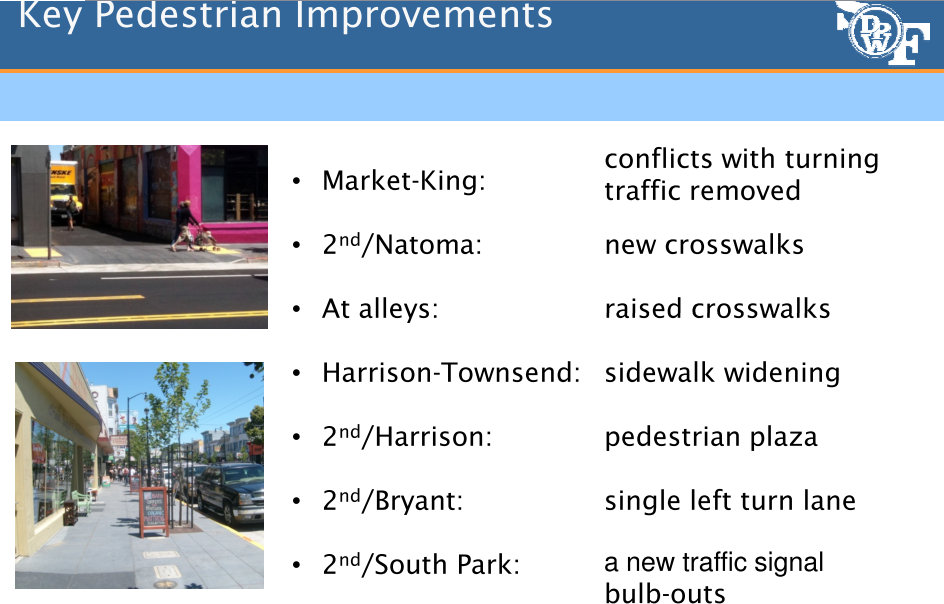

Another added provision is a new traffic signal at Second and South Park Street to make it easier for pedestrians to cross.

The green, parking-protected bike lanes will be raised a “half-step” toward curb height, similar to the design of bike lanes in Copenhagen. The bike lanes will also be separated by a sloped buffer zone to allow bike riders to exit the bike lane to avoid hazards. That will also allow drivers to stop in the bike lane as a “last resort” to load deliveries and to drop off paratransit passengers, planners said.

Car parking will be removed from one side of the street, meaning that parking on Second itself will be reduced by 60 percent, while the total parking supply within one block of Second will be reduced 10 percent. Planners said retaining loading zones in the remaining spaces will be a high priority, though most deliveries are done in alleys anyway.

Crosswalks at alleyways will be raised to the sidewalk level, and all Muni stops will have 8-foot wide boarding islands, which will sit between the bike lanes and traffic lanes (think Duboce and Church). Left turns from Second will be banned at most intersections, and right-turning drivers will have a signal phase separate from pedestrian and bicycle crossing phases.

Planners expect the cost of the project, currently estimated at $13.5 million, to be mostly funded by the federal One Bay Area Grant. The project is expected to begin construction in September 2015 and be completed in September 2016.

Second at Townsend Street.
Right-turning drivers will have a separate traffic signal phase from pedestrian and bicycle traffic.
  • 94103er

    Agreed about the bell!!! I continued to be baffled when hard-core cyclists rant about ‘hazards’ in separated bike lanes when a simple chime of a bell generally gets people out of your way. It’s not rude, like honking is.

  • Andy Chow

    There’s no perfect set up that could apply to all stops. Some stops are
    better near-side (before intersection) and some are better far-side
    (past intersection). Far-side works better on wider roads with right
    turn lanes and signal priority. Near side works better on narrower
    streets with stop signs.

  • Anonymous

    Seems to me that bicyclists would want something to let them know to watch out for pedestrians.

  • cyclists are equipped with something for that, called their brains. The stats bear out that this works 99.999999% of the time.

  • Anonymous

    That’s completely ridiculous. You’re acting like a bicycle is a car. Speed bumps were designed for cars, not bicycles. Bicyclists aren’t encased in steel like a motorist who hence have limited visibility and their senses dulled. Therefore, bicyclists can actually see (and hear!) pedestrians while motorists need speed bumps (in addition to a bunch of other safety measures like stop lights, flashing warning lights, sirens, etc). And the proof of all this (even though it should be obvious) lies in the fact that the number of pedestrians injured by cyclists is orders of magnitude less than those injured by cars.

    We need to move past this idea that bicycles are cars. That sort of anachronistic and completely logic-decaying thinking is literally getting people killed.

  • Anonymous

    The City has announced that it has a goal of 20% of all trips will be made by bicycle by 2020. With that many more bikes on the road the pedestrian space where it interfaces with cycle tracks needs to be better demarcated to make the street safe for all users. Another commenter suggested speed bumps. Maybe that is overkill. My suggestion was to paint the cycle track yellow in the vicinity of bus zones, or a striped area that clearly indicates where pedestrians are to cross. Just because bicyclists can see and hear better than motorists doesn’t mean they always do. Sutchi Hui and Didi Cherney are proof of that.
