Oakland Bollard-izes Protected Intersections at Lake Merritt

Hey SFMTA, tell us again why you can't do protected Intersections on the cheap?

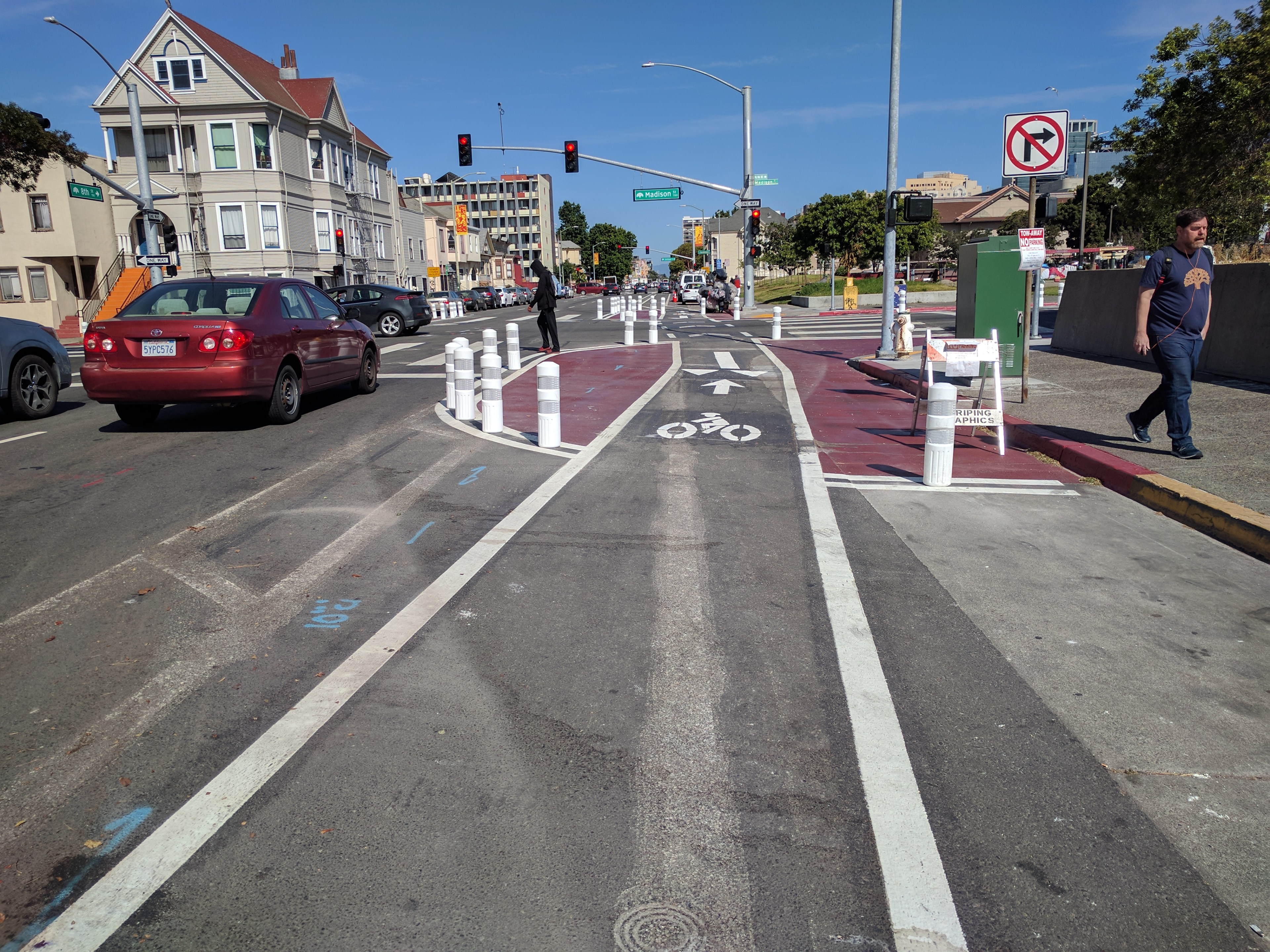

One of Oakland's new low-cost protected intersections around Lake Merritt BART, complete now with K71 bollards. Photos: Streetsblog/Rudick
One of Oakland's new low-cost protected intersections around Lake Merritt BART, complete now with K71 bollards. Photos: Streetsblog/Rudick

Note: GJEL Accident Attorneys regularly sponsors coverage on Streetsblog San Francisco and Streetsblog California. Unless noted in the story, GJEL Accident Attorneys is not consulted for the content or editorial direction of the sponsored content.

The City of Oakland finished installing bollards on its new protected intersections and pedestrian bulb outs around the Lake Merritt BART station last week. And so far, they seem to be working as planned, slowing turning traffic, making it easier for Oakland Chinatown’s large elderly population to cross the street, as well as offering safer crossings for cyclists.

With shorter crossing distances and motorist forced to slow around turns, it’s just easier to cross the street thanks to these protected intersections

Streetsblog watched a crew on Friday put in the last of the K71 bollards, which appear more robust than the safe-hit posts generally favored in San Francisco. They’re installed by drilling a hole in the asphalt and then filling the hole with epoxy. A threaded mount is then inserted into the hole and, after it dries, the bollard is bolted onto  it–making replacement quick and easy. Streetsblog thanked the crew for doing the messy work. “Anything to help keep people safe–it’s not fun to ride [a bike] through here,” said one of the workers.

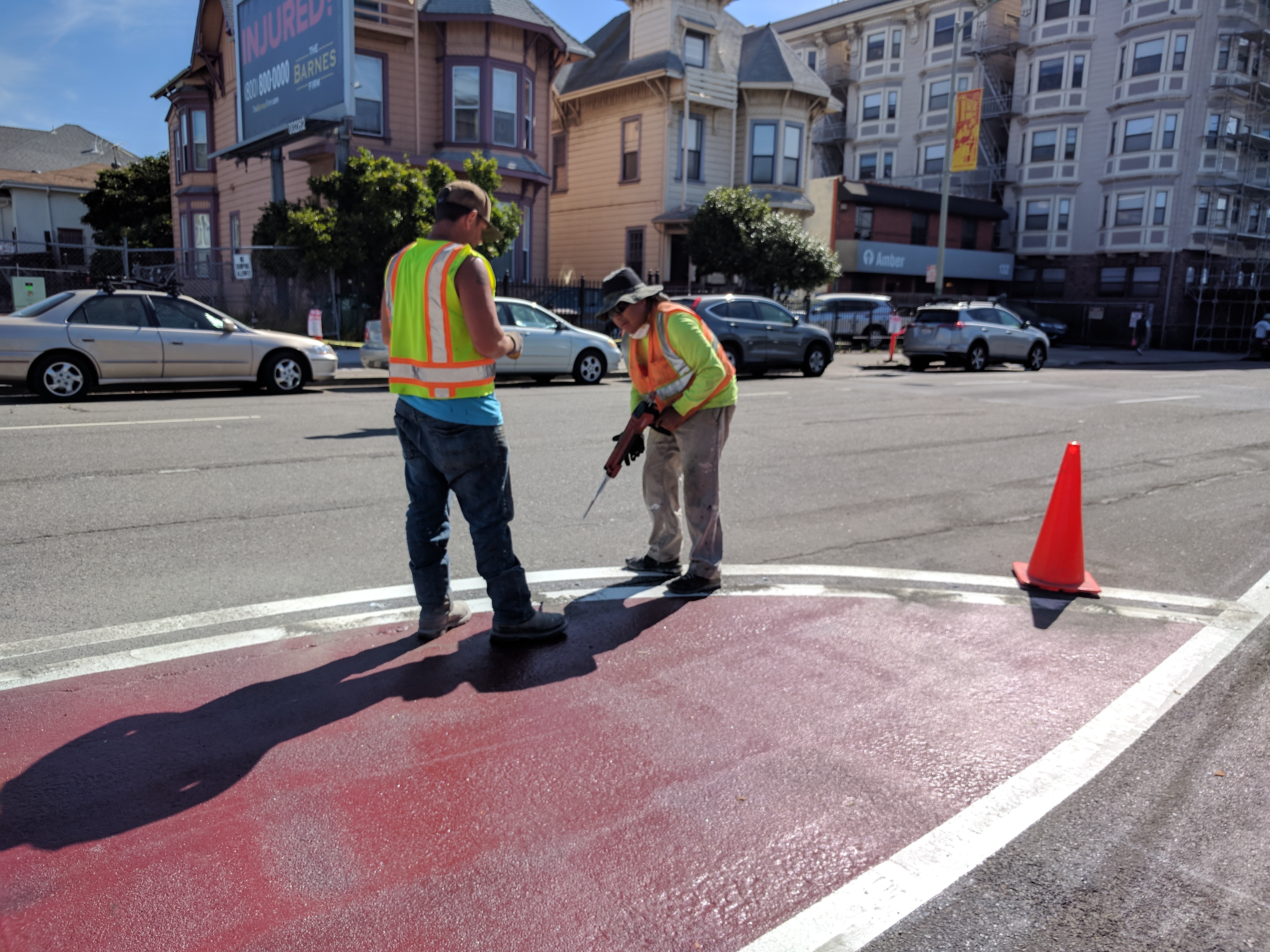

Workers filling holes with resin to glue down in the threaded piece of pipe that will hold the bollard
Workers filling holes with resin to glue down the threaded mount that will hold the bollard

Meanwhile, San Francisco advocates were quick to point to the elephant in the room on their side of the Bay: if it’s this easy and cheap to do protected intersections for bicycles in Oakland, why is SFMTA still doing “mixing zones,” at intersections, which Dutch engineers have found are not as safe? (For that matter, why does Oakland continue to install mixing zones in other locations?)

Streesblog has been asking the same question as Grochmal for years, and the answer is usually that protected intersections take longer and/or require phased signals.

“Protected intersections work best when you are able to set the bikeway away from the right lane by a car length and when you are able to get turning vehicles to be close to perpendicular when crossing the bikeway,” wrote Ben Barnett, spokesperson for SFMTA. “Some intersections are more conducive to this than others. We are planning to implement such a design for northbound 7th Street at Townsend Street as part of the quick build project going to public hearing July 9th and it will be evaluated along with the rest of the bikeway as part of our evaluation program.”

Streetsblog also has a request in to Oakland’s DOT to find out if protected bike lanes will be added around Lake Merritt BART. However, OakDOT’s Nicole Ferrara had previously explained that it’s a money issue, and as developments go in around Lake Merritt BART, they may be able to get protected bike lanes funded as mitigation.

Meanwhile, if you follow Grochmal’s Twitter exchange, there’s also a bunch of neat videos and suggestions for minor improvements to the Lake Merritt treatments from Bike East Bay’s Robert Prinz.

Streetsblog has a suggestion too–shortly after the posts were installed at 7th and Madison they were pretty much ruined by an incompetent and dangerous motorist(s). Maybe it’s time to install something made out of steel and/or concrete, that can damage or disable a car? Maybe a concrete block next to the posts? Wouldn’t that be better than allowing a motorist who is this dangerous to continue on their way, so they can mow down a person a mile or two farther down the street?

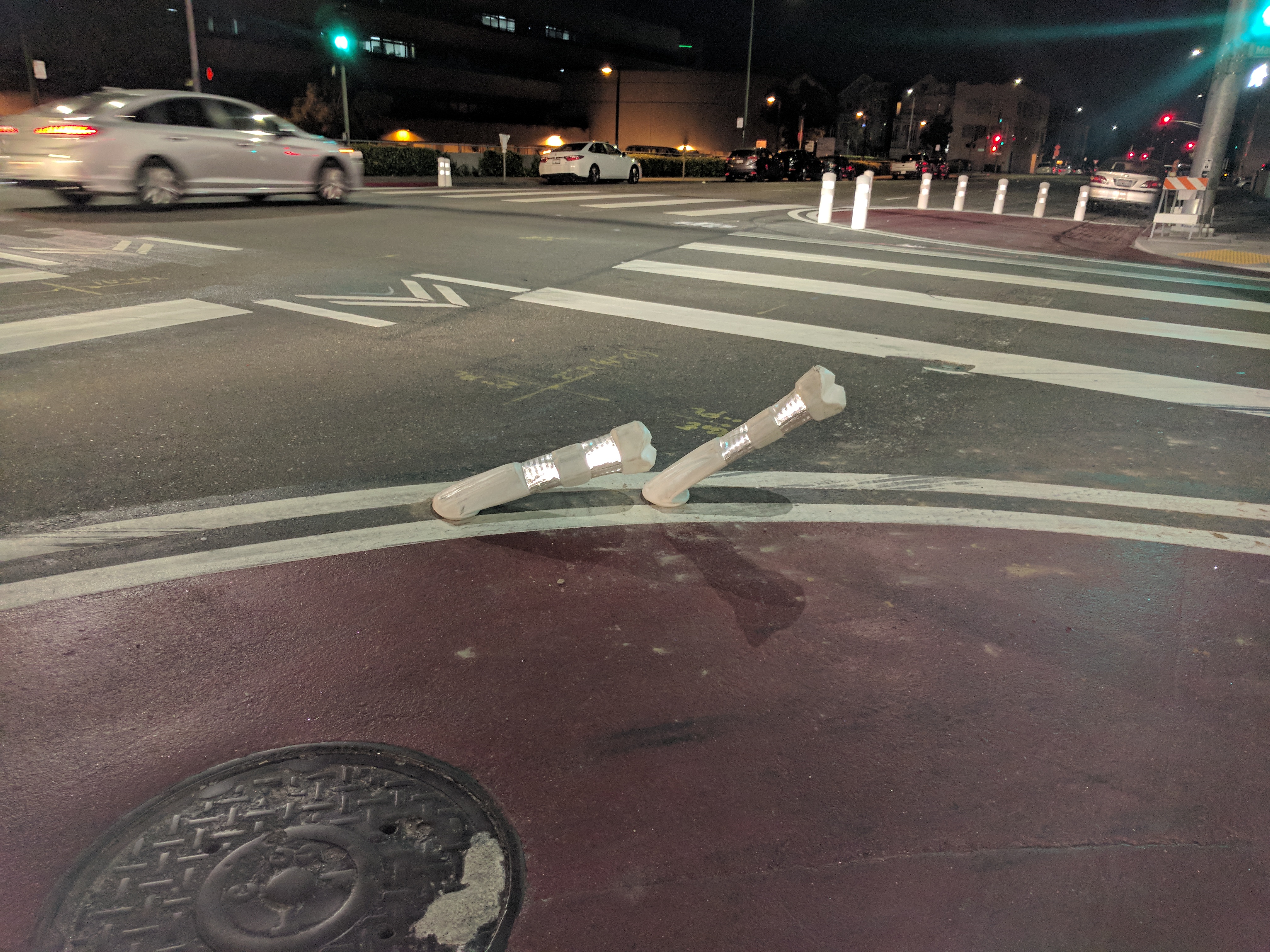

Come on DMV... how do you keep issuing drivers license to people who clearly can't operate a car?
Come on DMV… how do you keep issuing drivers license to people who clearly can’t operate a car safely?

Let’s hope longer-term improvements will depend more on concrete. Let us know your thoughts below.
